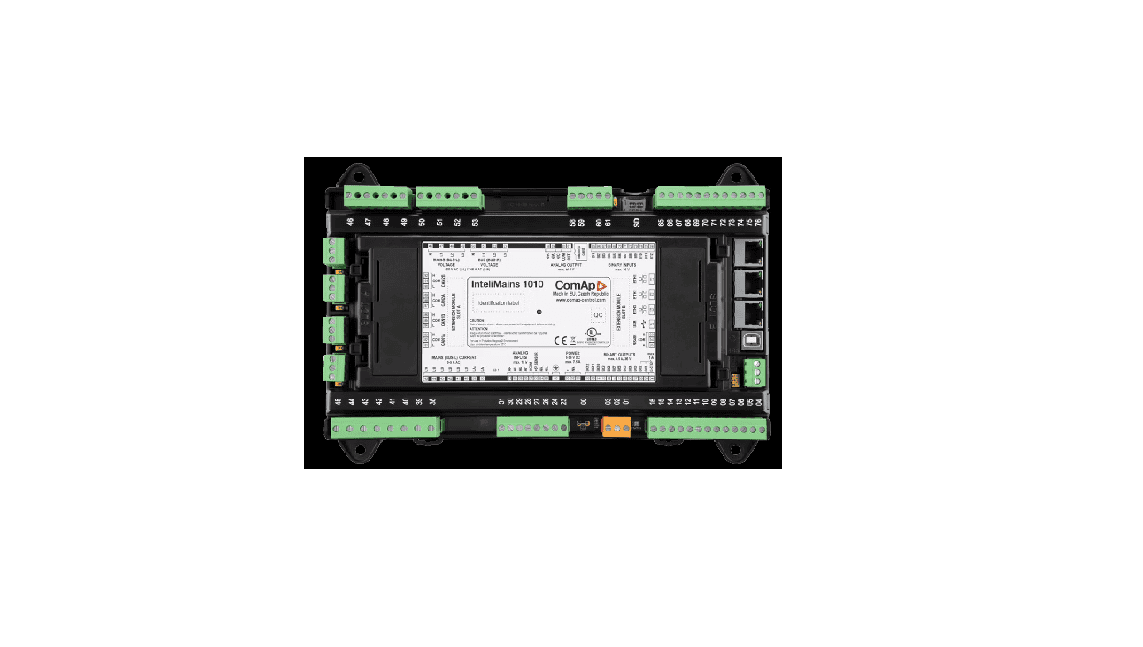

The newest generation of our Mains controllers, the InteliMains 1010 works together with our InteliGen 1000 controller to synchronise a set of gen-sets to the mains/utility whenever needed. It comes with pre-programmed functions that enable fast and easy configuration according to your needs.
The InteliMains 1010 offers:
- Cooperatation with ComAp's InteliGen 1000 controllers forming a solution with up to 64 units without any extra repeaters or extensions
- Keeping your business and data as safe as possible, meeting the ISA 62443 level 2 - level 3 security requirements
- Hot-swap redundancy feature enabling a redundant unit to take over in case the primary controller fails, helping to minimise solution downtime*
- CAN bus redundancy ensuring that a redundant CAN line be created and take over in case of CAN failure*
- Modbus Client which can initiate Modbus communication and control 3rd party devices*
- Large built-in PLC interpreter with the use of ComAp's free PLC Editor
- Compatible load/VAr sharing and power management with other ComAp solutions
- Dynamic spinning reserve preventing supply drops in hybrid installations with PVs
- Multi ECU (Electronic Control Unit) enabling communication with more independent J1939 devices such as Engine Control Unit, AVR modules, Breaker, etc.
- Built-in CAN bus and event-based history logger for easy and fast troubleshooting
- User-defined protections and setpoints on top of default protection
- AirGate 2.0 for easy connection to your equipment remotely, without worrying about your asset’s IP address
- Remote control and monitoring of your gen-set operations with WebSupervisor, our cloud-based fleet management tool
- Peak shaving for limiting the import from the mains (e.g. due to higher prices)
- Load shedding ensuring the most important loads are running even when there is a lack of power
- Secure user management
- A wide range of plug & play displays with automatically generated content that can be easily edited in our free Screen Editor or InteliSCADA
- Signal sharing over the CAN bus among a group of control units
- Possibility to have a mains application in a gen-set controller with firmware upload functions
- One hardware for more applications, enabling easy switching between MCB, MGCB or BTB application
- More precise measuring with a True Root Mean Square measurement feature
* Features available with a software key.
